Discontinued

Replacement Instrument - PurePep® Chorus

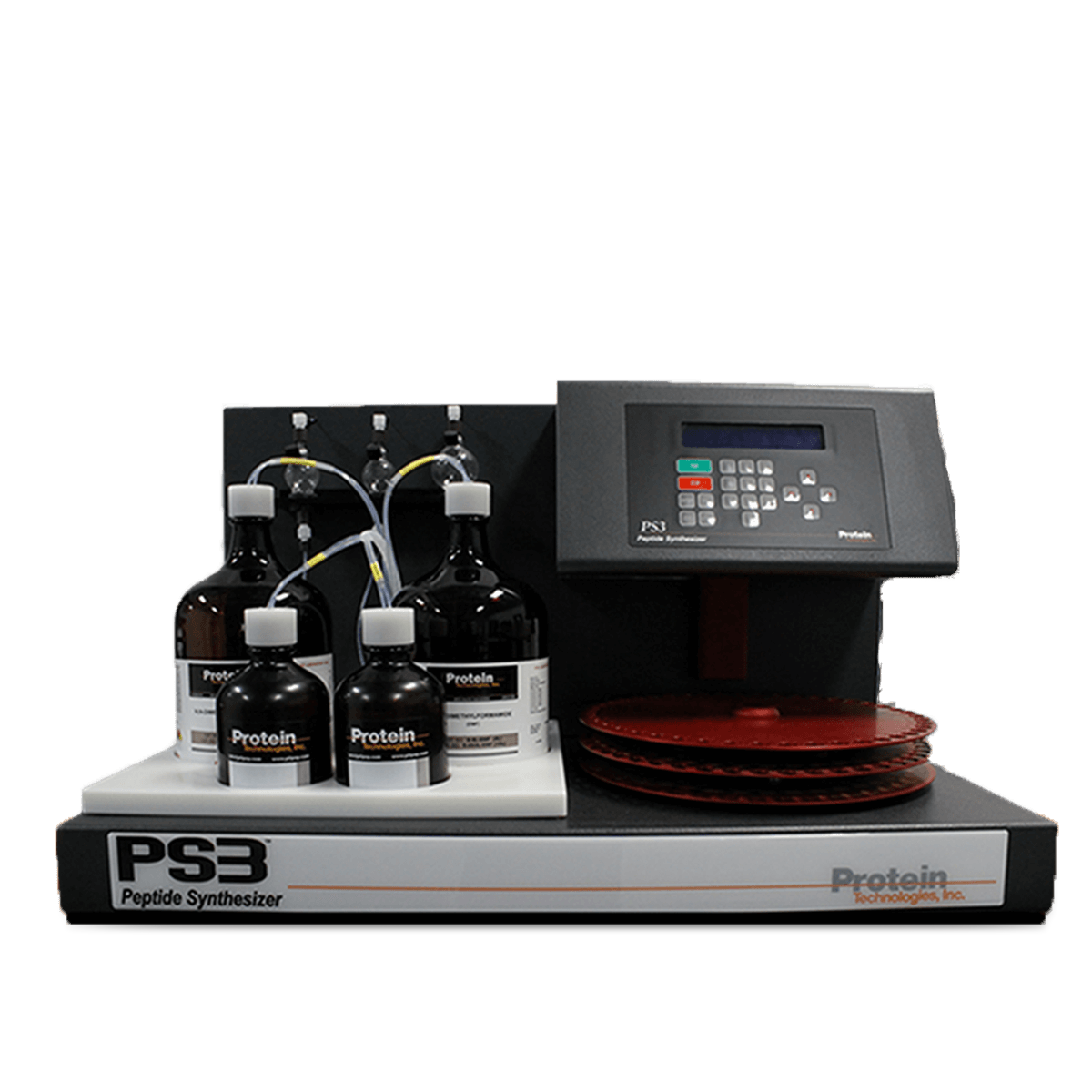

Self-installed Benchtop Peptide Synthesizer

The original reliable, versatile “plug’n play”
3-channel peptide synthesizer

  • Three reaction vessels
  • Standard or custom program
  • Fluid delivery
  • Supports Fmoc and t-Boc chemistries



Features
Applications
Specifications
Chemicals
Resources

Features

blockOneRows: 2; blockTwoRows: 2; blockRowCount: 2

Three reaction vessels

Typical cycle times are under 40 minutes per coupling. Three reaction vessels let you synthesize up to three completely different peptides sequentially without operator attention. PS3 will perform up to 45 couplings automatically, without reloading or user intervention. Set it up to run overnight or over a weekend, for maximum productivity.

Standard or custom program

“Plug’n play” simplicity allows you to load vials in sequence and indicate what start and stop positions. Specify standard or custom program for each coupling, and push "RUN."

Fluid delivery

The zero-dead-volume fluid valve system has all PTFE wetted surfaces and just one moving part. A self-diagnostic program and multiple sensors ensure proper performance while a printer provides a permanent record of each synthesis. Fluid transfer and mixing are accomplished under inert atmospheres of nitrogen or argon.

Supports Fmoc and t-Boc chemistries

PS3 allows you to use a variety of coupling techniques: Fmoc-N-carboxyanhydride and Fmoc-acid fluoride chemistries can be performed without instrument modification. Different chemistries can be mixed in one synthesis. PS3 can also be used with either Fmoc or t-Boc protected amino acids. Pre-packaged reagents are available for 0.1 and 0.5 mmol synthesis scales. Coupling programs can be customized for special needs.

Looking for more information?

Specifications

Number of reaction vessels

3, used sequentially
Synthesis scale range
0.005 – 1.5 mmol (at 2x excess)
Number of solvent positions/sizes
2 x 4 L primary solvent
1 x 1 L deprotectant
1 x 1 L base
Number of amino acid positions

5 amino acid vials, 5 mL capacity

Pre-packaged vials available

0.4 mmol, 1.0 mmol scales
Chemistries supported
Fmoc, t-Boc, organic, others
Activation
HBTU, HATU, HCTU, TBTU, PyBOP, others
Throughput
User defined

Fluid measurement technique

Timed delivery, conformed with optical sensors
Fluid transfer method

Positive pressure with nitrogen
Top-down washing

Agitation method

Nitrogen bubbling

Cleavage
Off instrument
Waste container
One 20 L container
Control interface
On-board CPU, LCD display and keyboard
Preset and user programmable coupling conditions
Manual operation, cleaning procedures
Reporting
Direct output to external printer (printer included on 115 V units only)
Power


115 V/60 Hz or 230 V/50 Hz

Dimensions (W x D x H)
32" x 21" x 19.5" (81 cm x 53 cm x 49 cm)
Weight
Approximately 51 lbs. (23 kg)
Warranty
One year, parts and labor
